Dimension Of flanges

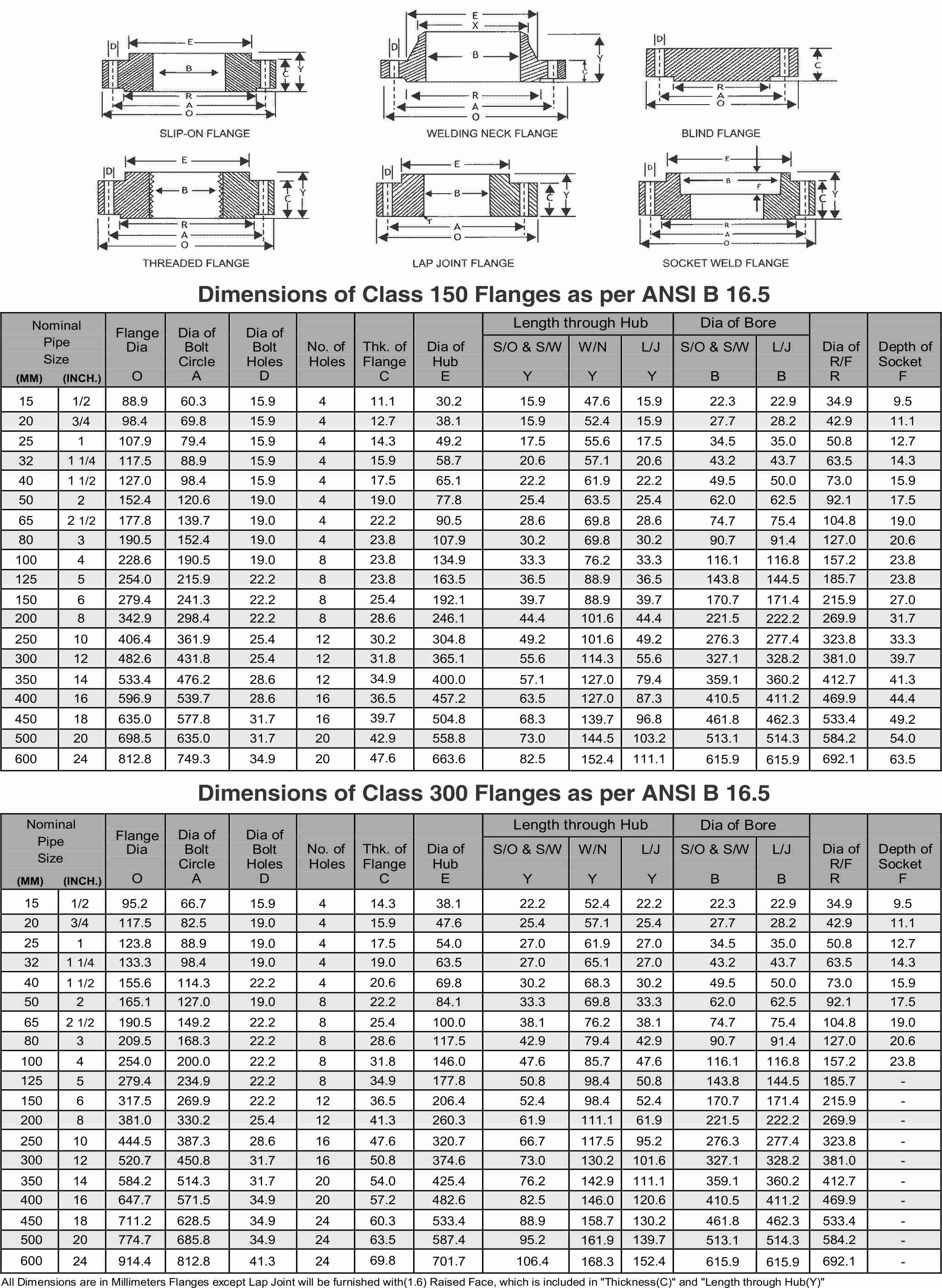

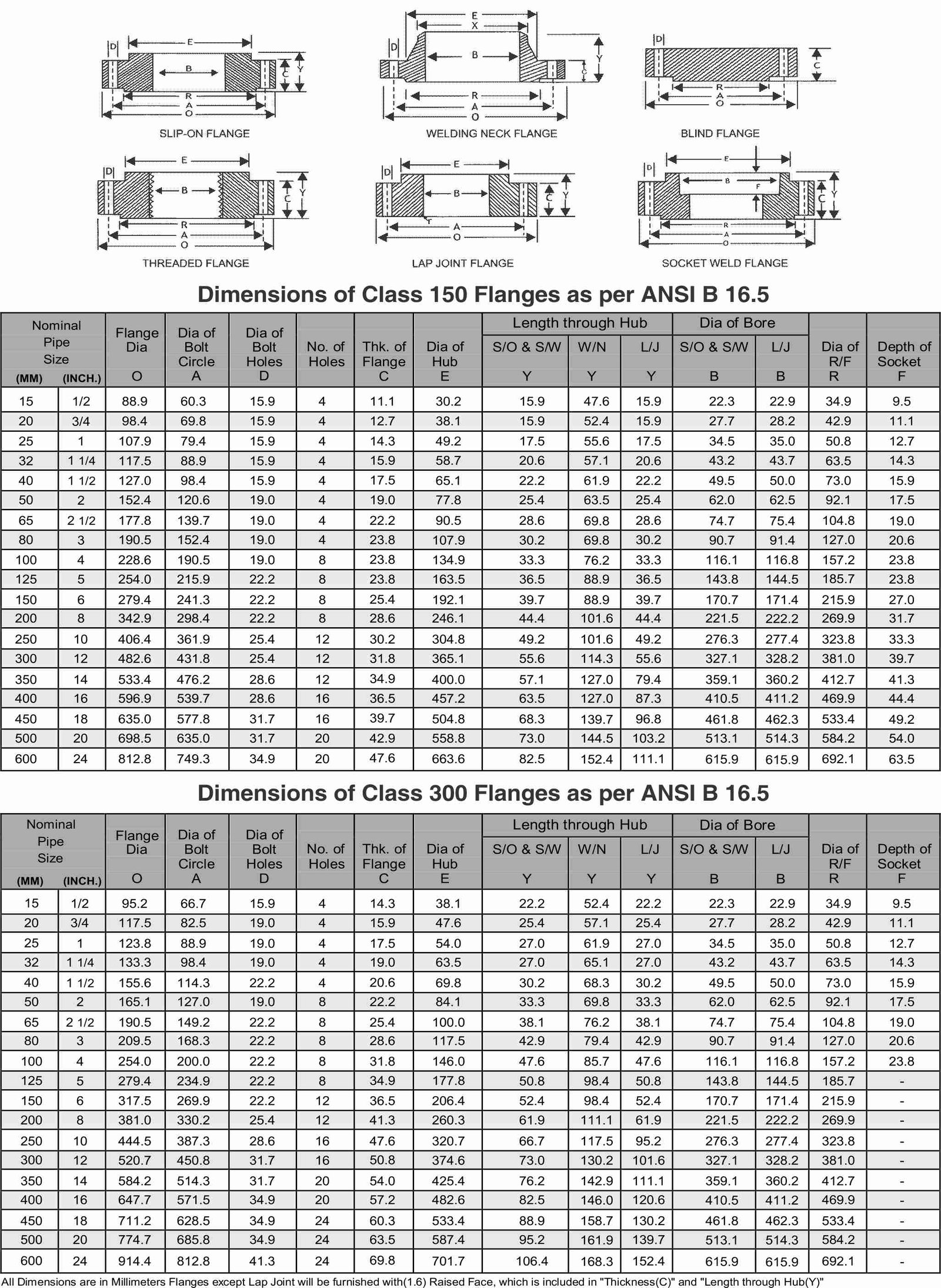

Dimension of class 150 & 300 Flanges As Per Ansi B 16.5
Flanges come in various dimensions, typically defined by their diameter, thickness, and bolt hole pattern, ensuring a secure connection between pipes or components. Standard flange dimensions include nominal pipe size (NPS), bolt circle diameter (BCD), and the number of bolt holes.
